Nylon Thermal Plastic
0.7W RenJie® TCP100-07-06A Thermally Conductive Plastic
Model: TCP100-07-06A
TCP100-07-06A is a nylon thermally conductive engineering plastic specially developed for enclosures that require high thermal conductivity and can reduce weight by more than 30% compared to similar aluminum equipment.
| Product Description | Nylon Thermal Plastic |
|---|---|
| RenJie®Grade | TCP100-07-06A |
| Dielectric Breakdown Voltage | >5.5(KV/mm) |
| Dielectric Constant, 1MHz | 4.5MHz |
| Flame retardancy | V-0 |
| Specific Gravity (g/cm³) | 1.55 |
TCP100-07-06A is a nylon thermally conductive engineering plastic specially developed for enclosures that require high thermal conductivity and can reduce weight by more than 30% compared to similar aluminum equipment.
TCP100-07-06A — Features
- Good thermal conductivity
- Excellent thermal conductivity compared to normal engineering plastics
- Lighter than normal Aluminum housing 30% in weight
- Excellent mould ability in injection moulding
- Much higher production yield than normal Aluminum Die Casting
- Excellent flexibility in designing final products such as housings.
TCP100-07-06A —Application

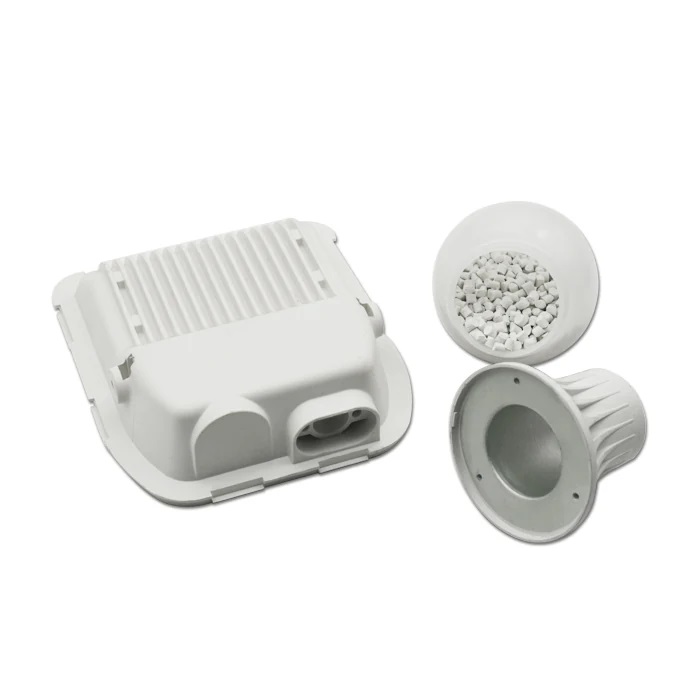

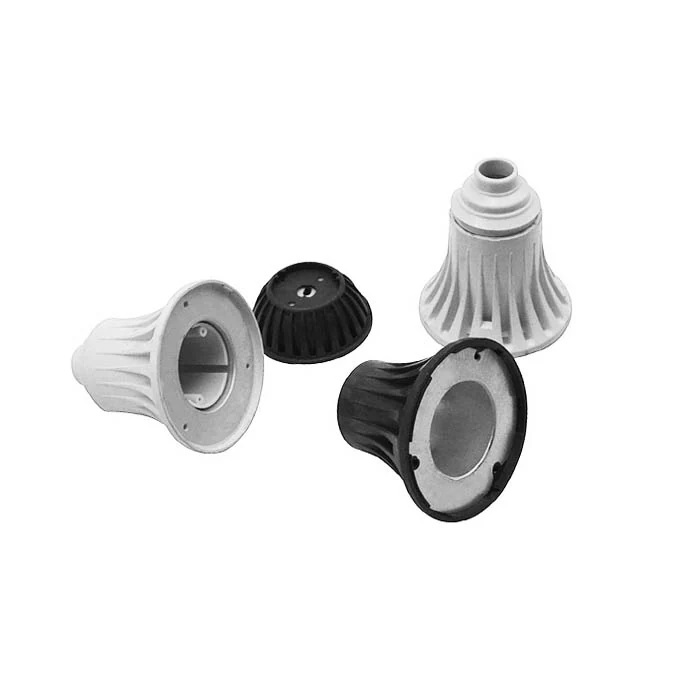

Typical application targets for this grade include TCP™100-07-06A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink..
TCP100-07-06A — datasheet specifications
| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Physical Properties | ||
| The material | Nylon | — |
| Color | White | Visual |
| Melt index | 80 g/10min | ASTM D1238 |
| Specific Gravity (g/cm³) | 1.5 | ASTM D792 |
| Shrinkage | 0.2-0.5 % | ASTM D955 |
| Mechanical Properties | ||
| Tensile Strength | 39.55 MPa | ASTM D638 |
| Flexural Strength | 45.5 MPa | ASTM D790 |
| Flexural Modulus | 9500 MPa | ASTM D638 |
| Impact Strength, notched | 5.3 kJ/m² | ASTM D256 |
| Electrical Properties | ||
| Dielectric Breakdown Voltage (KV/mm) | >5.5 | ASTM D149 |
| Dielectric Constant, 1MHz | 4.5 | ASTM D150 |
| Volume Resistivity (Ω·m) | 8.0 × 10¹² | ASTM D257 |
| Thermal Properties | ||
| Heat Deflection Temperature | 180 °C | ASTM D648 |
| Thermal Conductivity Through Plane (W/m·K) | 0.7 | ASTM D5470 |
| Flame retardancy | V-0 Class | Min. thick. 1.0mm |
| Injection parameters | ||
| Barrel Zone Temperature — One sect | 240-260°C | — |
| Barrel Zone Temperature — Two sect | 260-275°C | — |
| Barrel Zone Temperature — Three sect | 260-275°C | — |
| Mouth Temperature | 250-280°C | — |
| Melt Temperature | 250-280°C | — |
| Bake Temperature | 90-100°C 4H | — |
| Mould Temperature | 80-100°C | — |
| Injection Pressure | 3-9Mpa Bar | — |
| Injection Speed | High Speed mm/s | — |
* Match values to the PDF revision cited on your purchase order.
| Product Description | Nylon Thermal Plastic |
|---|---|
| RenJie®Grade | TCP100-07-06A |
| Dielectric Breakdown Voltage | >5.5(KV/mm) |
| Dielectric Constant, 1MHz | 4.5MHz |
| Flame retardancy | V-0 |
| Specific Gravity (g/cm³) | 1.55 |
| Thermal Conductivity Through Plane (W/m·K) | 0.8W/m-K |
| Volume Resistivity (Ω·m) | 8.0 × 10¹² |
| Base Polymer | Nylon(PA) |
| Color | 白色 |
| Melt index | 80 g/10min |
| Shrinkage | 0.2-0.5 % |
| Tensile strength | 39.55 MPa |
| Flexural strength | 45.5 MPa |
| Flexural modulus | 9500 MPa |
| Impact Strength | 5.3 kJ/m² |
