Nylon Thermal Plastic
0.9W RenJie®TCP300PS-09-06A Thermally Conductive Plastic
Model: TCP300PS-09-06A
RenJie ® TCP300PS-09-06A is a white nylon thermally conductive engineering plastic with a thermal conductivity of 0.9 W/m · K, specially developed for enclosures that require high thermal conductivity, and its weight can be reduced by more than 30% compared with similar aluminum equipment.
| Product Description | Nylon Thermal Plastic |
|---|---|
| RenJie®Grade | TCP300PS-09-06A |
| Dielectric Breakdown Voltage | >10000 VAC |
| Dielectric Constant, 1MHz | 4.5MHz |
| Flame retardancy | V-0 |
| Thermal Conductivity Through Plane (W/m·K) | 0.9W/m-K |
RenJie®TCP300PS-09-06A Thermally Conductive Plastic — Product overview
RenJie ® TCP300PS-09-06A is a white nylon thermally conductive engineering plastic with a thermal conductivity of 0.9 W/m · K, specially developed for enclosures that require high thermal conductivity, and its weight can be reduced by more than 30% compared with similar aluminum equipment.
RenJie®TCP300PS-09-06A Thermally Conductive Plastic— Features
- Good thermal conductivity: 0.9W/mK
- Excellent thermal conductivity compared to normal engineering plastics
- Lighter than normal Aluminum housing 30% in weight
- Excellent mould ability in injection moulding Much higher production yield than normal Aluminum Die Castin Excellent flexibility in designing final products such as housings.
- UL94 V-0 (Ready).
RenJie®TCP300PS-09-06A—Application

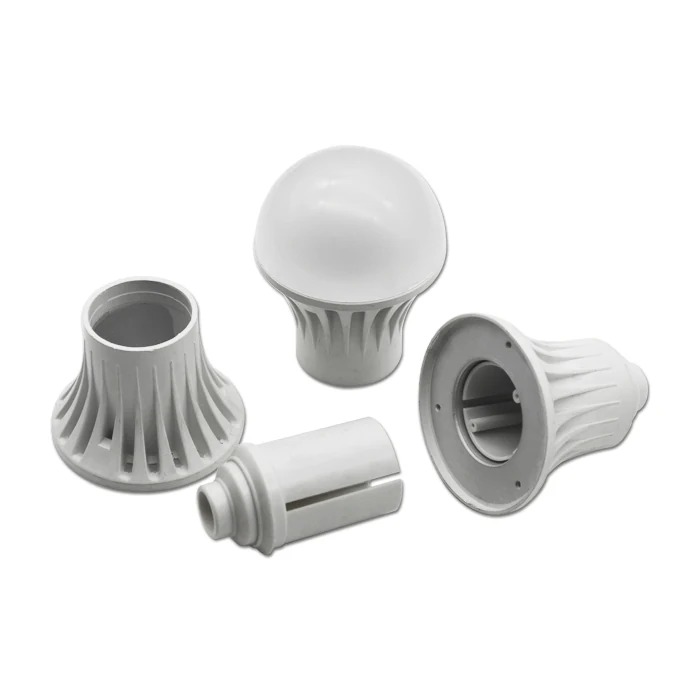

TCP300PS-09-06A can be used as a heat dissipation housing for LED light modules in LCD/LED TVs as well as for LED lighting fixtures such as MR16.
RenJie®TCP300PS-09-06A Thermally Conductive Plastic—Data Sheet
| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Physical Properties | ||
| Material | nylon | — |
| Color | White | Visual |
| Melt index | 64.85 g/10min | GB/T 3682-2000 |
| Specific Gravity (g/cm³) | 1.7 | GB/T 1033.1-2008 |
| Shrinkage | 0.3~0.6 % | GB/T 17037.4-2003 |
| Mechanical Properties | ||
| Tensile Strength | 38.2 MPa | GB/T 1040.2-2006 |
| Flexural Strength | 47.8 MPa | GB/T 9341-2008 |
| Flexural Modulus | 9500 MPa | GB/T 9341-2008 |
| Charpy Impact Strength, Notched | 17.5 kJ/m² | GB/T 1843-2008 |
| Electrical Properties | ||
| Dielectric Breakdown Voltage | >10000 VAC | ASTM D149 |
| Dielectric Constant, 1MHz | 4.5 | ASTM D150 |
| Volume Resistivity (Ω·m) | 7.0 × 10¹² | ASTM D257 |
| Thermal Properties | ||
| Heat Deflection Temperature | 170 °C | ASTM D648 |
| Thermal Conductivity Through Plane (W/m·K) | 0.9 | ASTM E1461 |
| Flame retardancy | V-0 Class | Min. thick. 1.0mm |
| Injection parameters | ||
| Barrel Zone Temperature — One sect | 250-280°C | — |
| Barrel Zone Temperature — Two sect | 260-290°C | — |
| Barrel Zone Temperature — Three sect | 250-270°C | — |
| Mouth Temperature | 270-290°C | — |
| Melt Temperature | 270-290°C | — |
| Bake Temperature | 100-120°C 4H | — |
| Mould Temperature | According to the machine tonnage °C | — |
| Injection Pressure | According to the machine tonnage Bar | — |
| Injection Speed | Medium Speed mm/s | — |
* Match values to the PDF revision cited on your purchase order.
| Product Description | Nylon Thermal Plastic |
|---|---|
| RenJie®Grade | TCP300PS-09-06A |
| Dielectric Breakdown Voltage | >10000 VAC |
| Dielectric Constant, 1MHz | 4.5MHz |
| Flame retardancy | V-0 |
| Thermal Conductivity Through Plane (W/m·K) | 0.9W/m-K |
| Specific Gravity (g/cm³) | 1.7 |
| Volume Resistivity (Ω·m) | 7.0 × 10¹² |
| Base Polymer | Nylon(PA) |
| Color | 白色 |
| Melt index | 64.85 g/10min |
| Shrinkage | 0.3~0.6 % |
| Tensile strength | 38.2 MPa |
| Flexural strength | 47.8 MPa |
| Flexural modulus | 9500 MPa |
| Impact Strength, notched | 17.5 kJ/m² |
