Nylon Thermal Plastic
0.9W RenJie®TCP300PS-09-06A1 Thermally Conductive Plastic copy
Model: TCP300PS-09-06A1
The RenJie ® TCP300PS-09-06A1 is a thermally conductive plastic developed specifically for enclosures requiring high thermal conductivity, which is more than 30% lighter than comparable aluminum equipment.
| Product Description | Nylon Thermal Plastic |
|---|---|
| RenJie®Grade | TCP300PS-09-06A1 |
| Dielectric Breakdown Voltage | 10 Kv |
| Dielectric Constant, 1MHz | 4.5MHz |
| Flame retardancy | V-0 |
| Thermal Conductivity Through Plane (W/m·K) | 0.9W/m-K |
RenJie®TCP300PS-09-06A1 Thermally Conductive Plastic — Product overview
RenJie ® TCP300PS-09-06A1 is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.
RenJie®TCP300PS-09-06A1 Thermally Conductive Plastic— Features
- Good thermal conductivity: 0.9W/mK
- Excellent thermal conductivity compared to normal engineering plastics
- Lighter than normal Aluminum housing 30% in weight
- Excellent mould ability in injection moulding Much higher production yield than normal Aluminum Die Castin Excellent flexibility in designing final products such as housings.
- UL94 V-0 (Ready).
RenJie®TCP300PS-09-06A1—Application

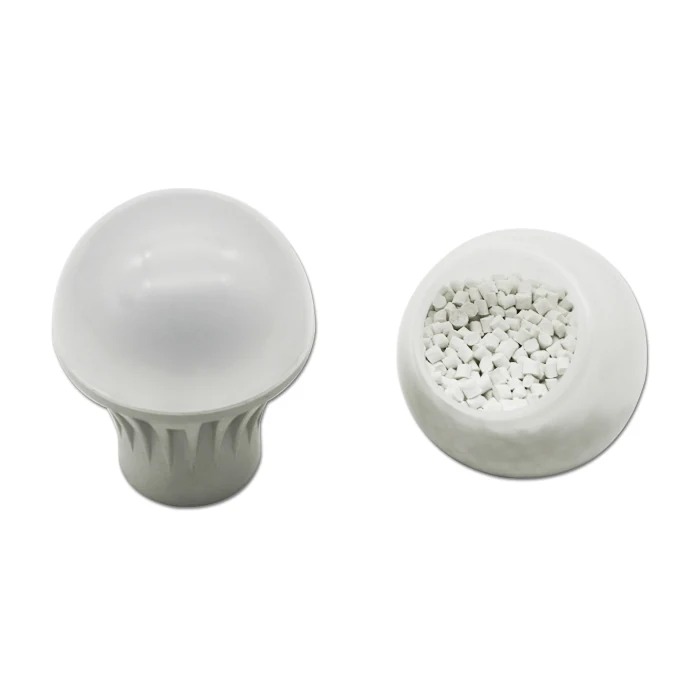

TCP300PS-09-06A1 can be used as a heat dissipation housing for LED light modules in LCD/LED TVs as well as for LED lighting fixtures such as MR16.
RenJie®TCP300PS-09-06A1 Thermally Conductive Plastic—Data Sheet
| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Physical Properties | ||
| Material | Nylon/Polybenzene thioether | — |
| Color | White | Visual |
| Melt index | 100±10 g/10min | ASTM D1238 |
| Specific Gravity (g/cm³) | 1.6±0.05 | ASTM D792 |
| Bibulous rate, saturated | 2 | ASTM D955 |
| Mechanical Properties | ||
| Tensile Strength | 65±5 MPa | ASTM D638 |
| Flexural Strength | 110±5 MPa | ASTM D790 |
| Flexural Modulus | 5500±300 MPa | ASTM D638 |
| Impact Strength, notched | 23±3 kJ/m² | ASTM D256 |
| Electrical Properties | ||
| Dielectric Constant, 1MHz | 4.5 | ASTM D150 |
| Dielectric strength, 1.0mm | 10 Kv | ASTM D149 |
| Volume Resistivity (Ω·m) | 9.0×10¹² | ASTM D257 |
| Thermal Properties | ||
| Heat Deflection Temperature | 190 °C | ASTM D648 |
| Thermal Conductivity Through Plane (W/m·K) | 0.9 | ASTM E1461 |
| Flame Retardancy | V-0 Class | Min. thick. 1.0mm |
| Injection parameters | ||
| Barrel Zone Temperature — One sect | 250-280°C | — |
| Barrel Zone Temperature — Two sect | 260-290°C | — |
| Barrel Zone Temperature — Three sect | 250-270°C | — |
| Mouth Temperature | 270-290°C | — |
| Melt Temperature | 270-290°C | — |
| Bake Temperature | 100-120°C 4H | — |
| Mould Temperature | By platform tonnage °C | — |
| Injection Pressure | By platform tonnage Bar | — |
| Injection Speed | Medium speed mm/s | — |
* These are typical values and should not be used for establishing product specification. The properties may vary uponthe machine process under use. For more information please contact RenJie® directly.
| Product Description | Nylon Thermal Plastic |
|---|---|
| RenJie®Grade | TCP300PS-09-06A1 |
| Dielectric Breakdown Voltage | 10 Kv |
| Dielectric Constant, 1MHz | 4.5MHz |
| Flame retardancy | V-0 |
| Thermal Conductivity Through Plane (W/m·K) | 0.9W/m-K |
| Specific Gravity (g/cm³) | 1.6±0.05 |
| Volume Resistivity (Ω·m) | 9.0×10¹² |
| Base Polymer | Nylon/Polybenzene thioether |
| Color | 白色 |
| Melt index | 100±10 g/10min |
| Shrinkage | 0.3~0.6 % |
| Tensile strength | 65±5 MPa |
| Flexural strength | 110±5 MPa |
| Flexural modulus | 5500±300 MPa |
| Impact Strength, notched | 23±3 kJ/m² |
