PPS Thermal Plastic

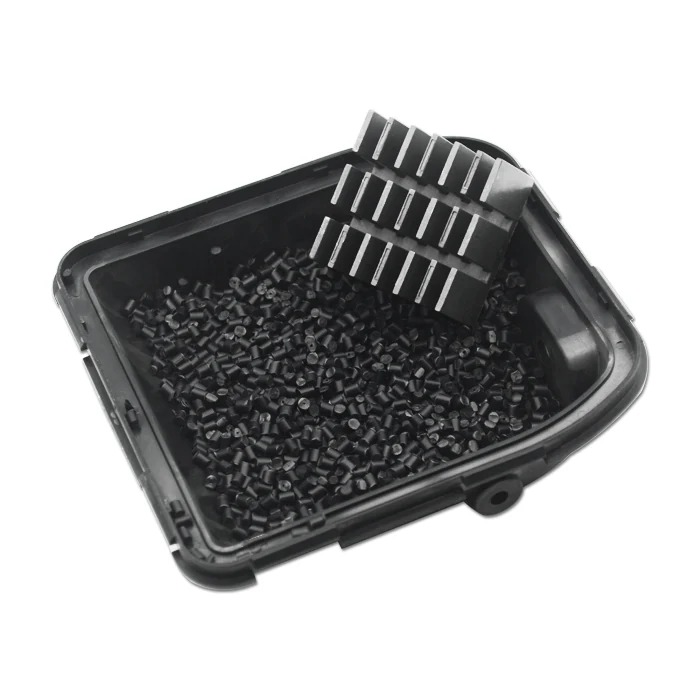

1.1W RenJie®TCP300PS-10-02S Thermally Conductive Plastic
Model: TCP300PS-10-02S
RenJie ® TCP300PS-10-02S series is a thermally insulated polyphenylene sulfide thermally conductive material with high thermal conductivity, chemical resistance and heat resistance. This product is mainly used in the automotive, electronic and electrical fields to manufacture parts such as housings, brackets, trays, etc. that require insulation and thermal conductivity.
| Product Description | PPS Thermal Plastic |
|---|---|
| RenJie®Grade | TCP300PS-10-02S |
| Dielectric Breakdown Voltage | >10(KV/mm) |
| Dielectric Constant, 1MHz | 4.5MHz |
| Flame retardancy | V-0 |
| Thermal Conductivity Through Plane (W/m·K) | 1.1W/m-K |
RenJie®TCP300PS-10-02S — Product overview
RenJie ® TCP300PS-10-02S series is a thermally insulated polyphenylene sulfide thermally conductive material with high thermal conductivity, chemical resistance and heat resistance. This product is mainly used in the automotive, electronic and electrical fields to manufacture parts such as housings, brackets, trays, etc. that require insulation and thermal conductivity.
RenJie®TCP300PS-10-02S Thermally Conductive Plastic — Features
- Good thermal conductivity
- High mechanical strength and excellent compression and shear properties
- Excellent creep property at high temperature and high fatigue resistance to repeated stress. In addition, due to the high heat resistance of the solder, it can fully withstand surface mount technology
- lonic impurities are very few and are used in fields where electrical properties are strictly required
- Much higher production yield than
- UL94 V-0
RenJie®TCP300PS-10-02S —Application
- Automobile engine and peripheralproducts
- Electric products for electric vehicles
- Mobile phone products
- Mixed faucets in bathrooms andlavatories, etc.
RenJie®TCP300PS-10-02S Thermally Conductive Plastic —Data Sheet
| arameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Typical Properties | ||
| Color | Black | Visual |
| Construction | Polyphenylene sulfide | — |
| Specific Gravity (g/cm³) | 1.7 | ASTM D792 |
| Mold Shrinkage | 0.03 % | ASTM D995 |
| Moisture Absorption | 0.00 % | ASTM D570 |
| Tensile Strength | 33 MPa | ASTM D638 |
| Flexural Strength | 66 MPa | ASTM D790 |
| Flexural Modulus | 9200 MPa | ASTM D790 |
| Impact Strength, notched | 61 cm-kgf/cm | ASTM D256 |
| Impact Strength, unnotched | 102 cm-kgf/cm | ASTM D1461 |
| Surface Resistivity | ≥10¹² Ω·cm | ASTM D257 |
| HDT, 0.45MPa, 6.4mm | 210 °C | ASTM D648 |
| HDT, 1.82MPa, 6.4mm | 260 °C | ASTM D648 |
| Thermal Conductivity Through Plane (W/m·K) | 1.1 | ISO22007-2.2 |
| Flame retardancy | Equal to UL 94 V0 | — |
| Injection Molding Processing Parameters | ||
| Drying Temperature | 80-90 °C | — |
| Drying Time | 3-4 hrs | — |
| Maximum Moisture Content | 0.01 % | — |
| Melt Temperature | 250-280 °C | — |
| Nozzle Temperature | 250-280 °C | — |
| Front - Zone 3 Temperature | 250-280 °C | — |
| Middle - Zone 2 Temperature | 240-280 °C | — |
| Rear - Zone 1 Temperature | 230-270 °C | — |
| Mold Temperature | 80-100 °C | — |
| Back Pressure | 3-9 Mpa | — |
| Screw Speed | 30-150 rpm | — |
* Match values to the PDF revision cited on your purchase order.
| Product Description | PPS Thermal Plastic |
|---|---|
| RenJie®Grade | TCP300PS-10-02S |
| Dielectric Breakdown Voltage | >10(KV/mm) |
| Dielectric Constant, 1MHz | 4.5MHz |
| Flame retardancy | V-0 |
| Thermal Conductivity Through Plane (W/m·K) | 1.1W/m-K |
| Specific Gravity (g/cm³) | 1.7 |
| Volume Resistivity (Ω·m) | ≥10¹² Ω·cm |
| Base Polymer | Polyphenylene sulfide(PPS) |
| Color | 黑色 |
| Melt index | 4 g/10min |
| Shrinkage | 0.03 % |
| Tensile strength | 33 MPa |
| Flexural strength | 66MPa |
| Flexural modulus | 9200 MPa |
| Impact Strength, notched | 61 kJ/m² |
